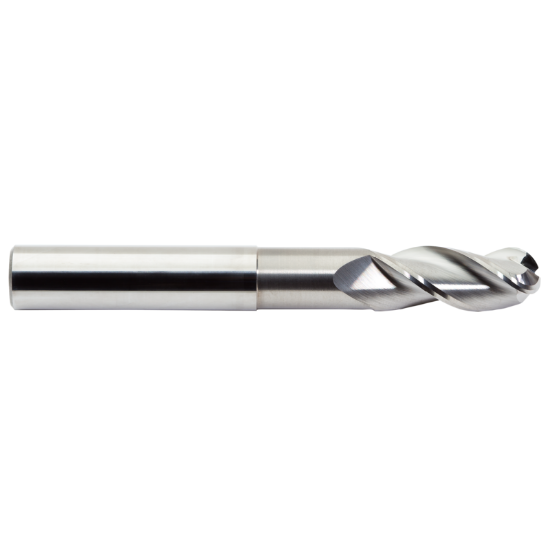

M.A. FORD 138B3937N5 DIA 10MM SH 0.3937 LOC 0.4724 OAL 4.3307 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® X-AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13384
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Copy Milling
Made In USA Yes
Performance Rating High Performance
Package Size 1
Shipping State Iowa
Dimensional Specifications
Neck Length 2.0472 52.00MM
Shank/Pilot Dia 0.3937 10.00MM
Dimension Description 0.394 x 0.394 x 0.472 x 4.331
Flutes/Inserts 3
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Overall Len 4.3307 110.00MM
Length Of Cut 0.4724 12.00MM
Inch/Metric Metric
End Of Tool Shape Ball Nose
Machine Side Connection Size 0.3937 10.00MM
Length Type Standard / With Neck
Helix Angle 36°
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
