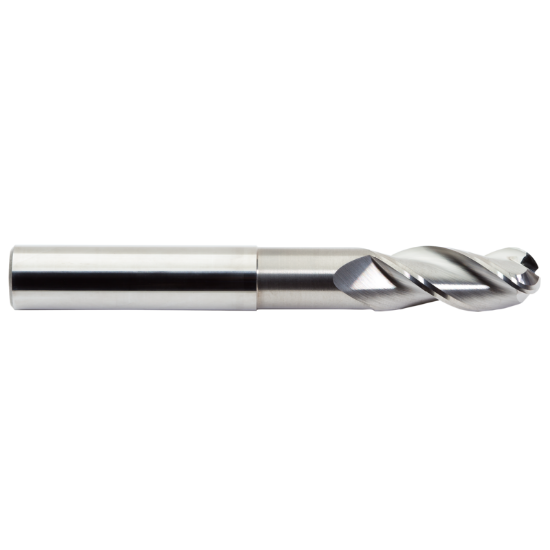

M.A. FORD 138B3150N5 DIA 8MM SH 0.3150 LOC 0.3937 OAL 4.3307 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® X-AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13382
Delivery date: 3-5 days
$52.33

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Copy Milling, Profile Milling
Package Size 1
Made In USA Yes
Shipping State Iowa
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.315 x 0.315 x 0.394 x 4.331
Cutter Dia 0.3150 8.00MM
Overall Len 4.3307 110.00MM
Inch/Metric Metric
Single/Double End Single End
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Neck Length 1.6535 42.00MM
Length Of Cut 0.3937 10.00MM
Length Type Standard / With Neck
Helix Angle 36°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Cutter Style Carbide Ball Finisher
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.3150 8.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
