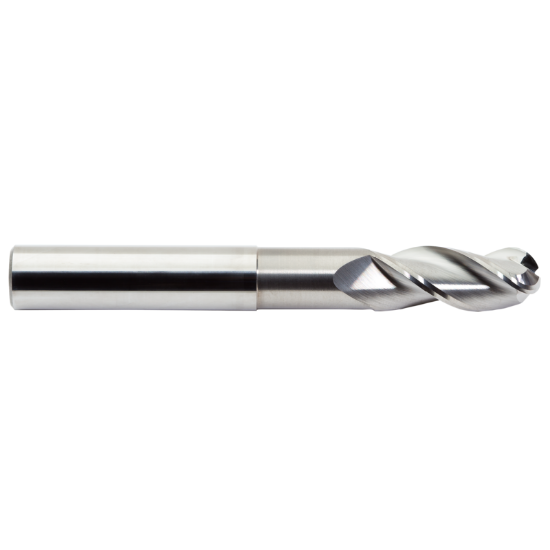

M.A. FORD 138B1968N5 DIA 5MM SH 0.2362 LOC 0.2756 OAL 2.9528 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® X-AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13378
Delivery date: 3-5 days
$32.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Profile Milling, Side Milling, Face Milling, Copy Milling
Shipping State Iowa
Made In USA Yes
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Neck Length 1.0630 27.00MM
Cutter Style Carbide Ball Finisher
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Dimension Description 0.197 x 0.236 x 0.276 x 2.953
Overall Len 2.9528 75.00MM
Inch/Metric Metric
Single/Double End Single End
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Machine Side Connection Size 0.2362 6.00MM
Length Of Cut 0.2756 7.00MM
Length Type Standard / With Neck
Helix Angle 36°
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
