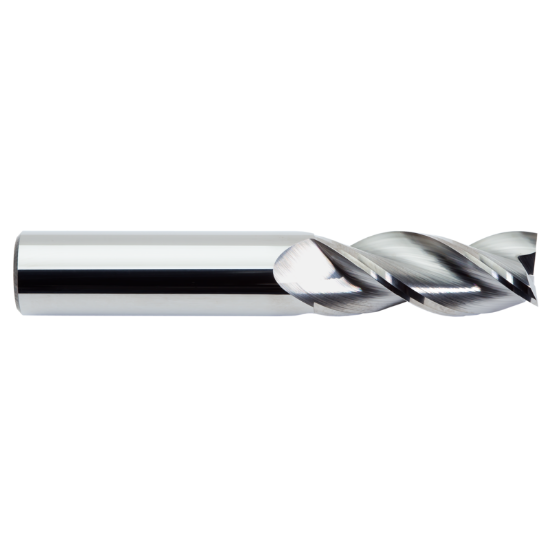

M.A. FORD 13837500R.050 DIA 3/8 SH 0.3750 LOC 0.50 OAL 2.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0500 1.27MM TuffCut® X-AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF14637
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Iowa
Application Copy Milling, Face Milling, Profile Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Dimensional Specifications
Corner Radius 0.0500 1.27MM
Helix Angle 36°
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.375 x 0.375 x 0.500 x 2.000
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Length Of Cut 0.5000 12.70MM
Machine Side Connection Size 0.3750 9.53MM
Overall Len 2.0000 50.80MM
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
