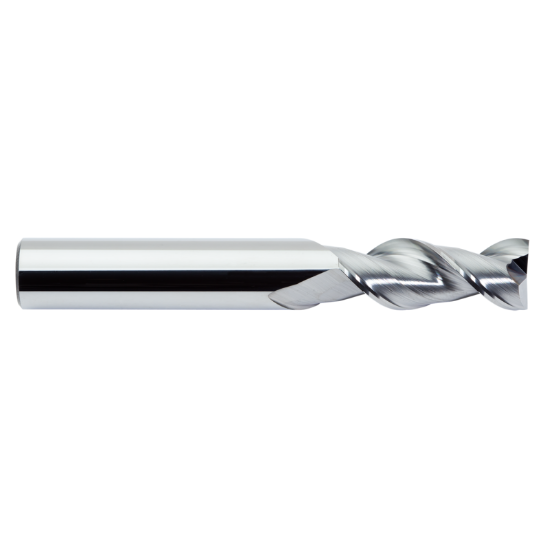

M.A. FORD 13650000R.125 DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.1250 3.18MM TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF75085
Delivery date: 3-5 days
$81.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Copy Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Shipping State Iowa
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.1250 3.18MM
Overall Len 3.5000 88.90MM
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.500 x 0.500 x 1.250 x 3.500
Flutes/Inserts 2
Helix Angle 45°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
