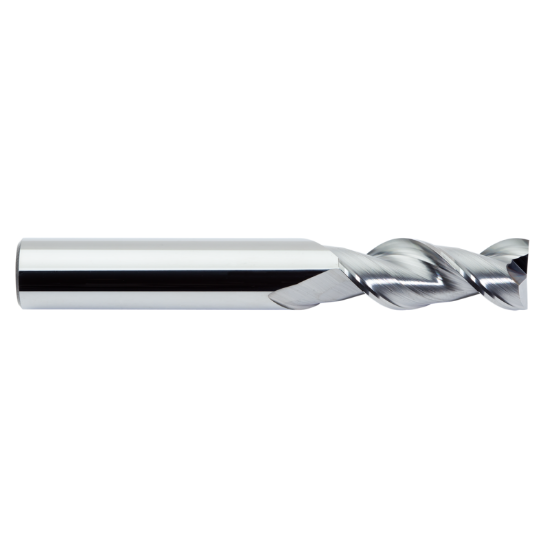

M.A. FORD 13637505R.060 DIA 3/8 SH 0.3750 LOC 1.00 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF75081
Delivery date: 3-5 days
$49.07

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Iowa
Package Size 1
Made In USA Yes
Application Copy Milling, Face Milling, Profile Milling, Side Milling
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.375 x 0.375 x 1.000 x 2.500
Corner Radius 0.0600 1.52MM
Cutter Dia 0.3750 9.53MM - 3/8
Helix Angle 45°
Flutes/Inserts 2
Length Of Cut 1.0000 25.40MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
