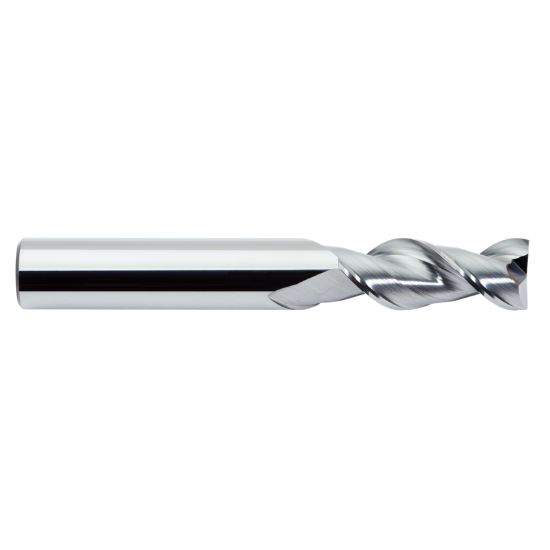

M.A. FORD 13637501R.125 DIA 3/8 SH 0.3750 LOC 1.50 OAL 3.2500 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.1250 3.18MM TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF77045
Delivery date: 3-5 days
$78.61

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Copy Milling, Profile Milling, Side Milling
Package Size 1
Shipping State Iowa
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Helix Angle 45°
Length Of Cut 1.5000 38.10MM
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
Corner Radius 0.1250 3.18MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Overall Len 3.2500 82.55MM
End Of Tool Shape Corner Radius
Dimension Description 0.375 x 0.375 x 1.500 x 3.250
Flutes/Inserts 2
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
