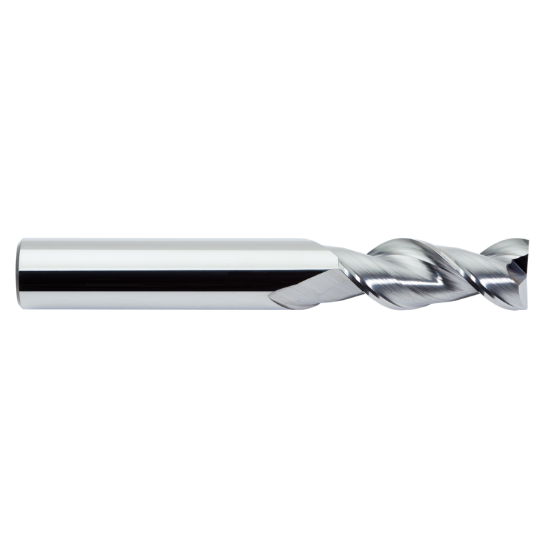

M.A. FORD 13637500R.060 DIA 3/8 SH 0.3750 LOC 0.7500 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF75078
Delivery date: 3-5 days
$55.89

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Profile Milling, Side Milling
Shipping State Iowa
Made In USA Yes
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Dimension Description 0.375 x 0.375 x 0.750 x 2.500
Corner Radius 0.0600 1.52MM
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutter Dia 0.3750 9.53MM - 3/8
Helix Angle 45°
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Flutes/Inserts 2
Length Of Cut 0.7500 19.05MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
