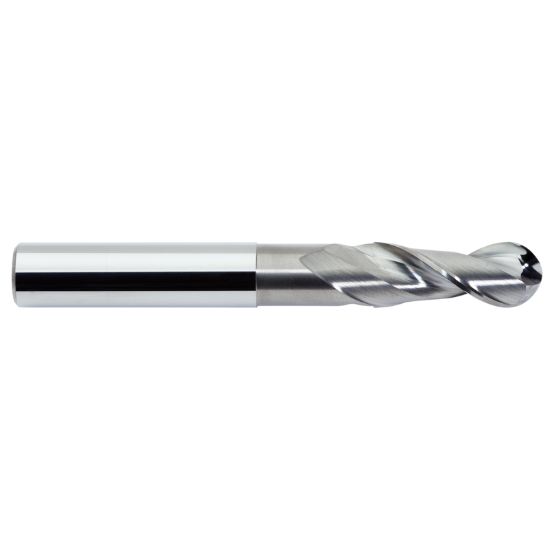

M.A. FORD 135B50001N DIA 1/2 SH 0.50 LOC 1.2500 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13488
Delivery date: 3-5 days
$89.11

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Side Milling, Copy Milling, Face Milling
Made In USA Yes
Performance Rating High Performance
Shipping State Iowa
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 1.2500 31.75MM
Cutter Style Carbide Ball Finisher
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Length Type Standard / With Neck
Overall Len 4.0000 101.60MM
Neck Length 2.1250 53.98MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.500 x 0.500 x 1.250 x 4.000
Cut Rating Aluminum, Graphite, Plastic
Helix Angle 37°
Cutter Dia 0.5000 12.70MM - 1/2
End Of Tool Shape Ball Nose
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
