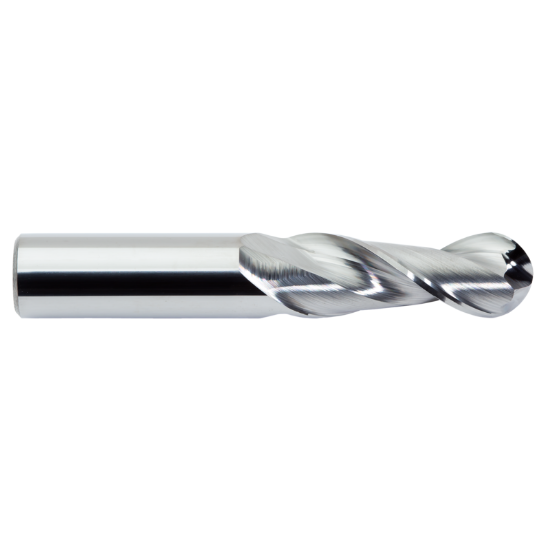

M.A. FORD 135B50000 DIA 1/2 SH 0.50 LOC 0.6250 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13464
Delivery date: 3-5 days
$75.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Profile Milling, Face Milling, Copy Milling
Made In USA Yes
Shipping State Iowa
Package Size 1
Dimensional Specifications
Helix Angle 37°
Overall Len 3.0000 76.20MM
Dimension Description 0.500 x 0.500 x 0.625 x 3.000
End Of Tool Shape Ball Nose
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Length Of Cut 0.6250 15.88MM
Length Type Standard
Cutter Style Carbide Ball Finisher
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
