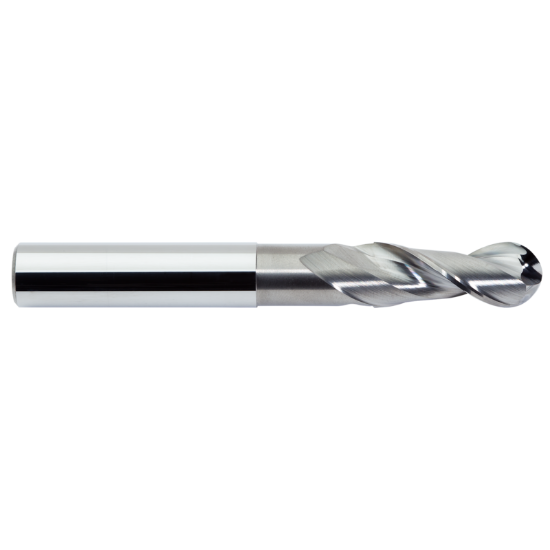

M.A. FORD 135B4724N5 DIA 12MM SH 0.4724 LOC 0.6299 OAL 4.7244 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13266
Delivery date: 3-5 days
$109.88

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Iowa
Application Side Milling, Face Milling, Profile Milling, Copy Milling
Made In USA Yes
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.4724 12.00MM
Overall Len 4.7244 120.00MM
End Of Tool Shape Ball Nose
Shank/Pilot Dia 0.4724 12.00MM
Length Type Standard / With Neck
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Inch/Metric Metric
Dimension Description 0.472 x 0.472 x 0.630 x 4.724
Neck Length 2.4409 62.00MM
Length Of Cut 0.6300 16.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Helix Angle 37°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
