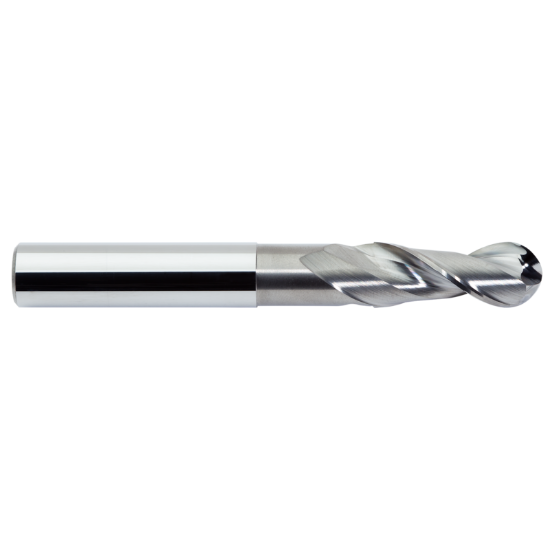

M.A. FORD 135B3937N5 DIA 10MM SH 0.3937 LOC 0.4724 OAL 4.3307 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13264
Delivery date: 3-5 days
$77.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Copy Milling, Profile Milling
Package Size 1
Shipping State Iowa
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Overall Len 4.3307 110.00MM
Inch/Metric Metric
Single/Double End Single End
End Of Tool Shape Ball Nose
Neck Length 2.0472 52.00MM
Shank/Pilot Dia 0.3937 10.00MM
Machine Side Connection Size 0.3937 10.00MM
Length Type Standard / With Neck
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Ball Finisher
Dimension Description 0.394 x 0.394 x 0.472 x 4.331
Cut Rating Aluminum, Graphite, Plastic
Helix Angle 37°
Flutes/Inserts 2
Length Of Cut 0.4724 12.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
