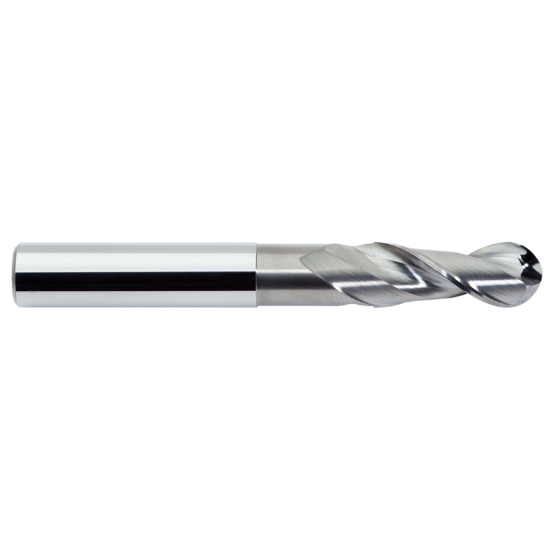

M.A. FORD 135B37501N DIA 3/8 SH 0.3750 LOC 1.00 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13486
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Copy Milling, Side Milling
Shipping State Iowa
Performance Rating High Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard / With Neck
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
Dimension Description 0.375 x 0.375 x 1.000 x 4.000
End Of Tool Shape Ball Nose
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Helix Angle 37°
Neck Length 2.1250 53.98MM
Overall Len 4.0000 101.60MM
Length Of Cut 1.0000 25.40MM
Flutes/Inserts 2
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
