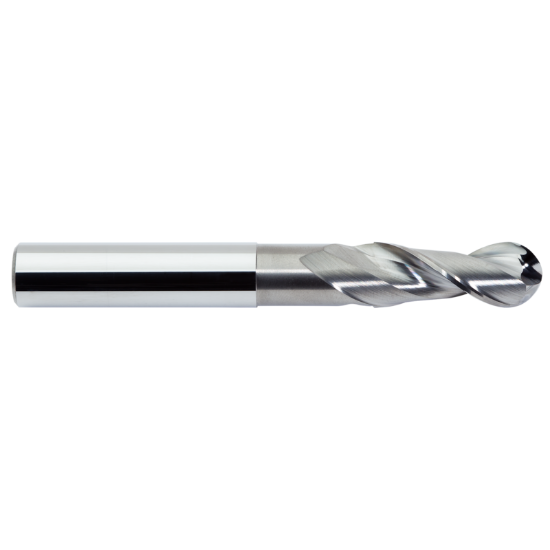

M.A. FORD 135B3150N3 DIA 8MM SH 0.3150 LOC 0.3937 OAL 2.5197 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13244
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Face Milling, Profile Milling, Copy Milling
Made In USA Yes
Shipping State Iowa
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.3150 8.00MM
Helix Angle 37°
Dimension Description 0.315 x 0.315 x 0.394 x 2.520
Overall Len 2.5197 64.00MM
Length Of Cut 0.3937 10.00MM
Length Type Standard / With Neck
Shank/Pilot Dia 0.3150 8.00MM
Cutter Dia 0.3150 8.00MM
Flutes/Inserts 2
Inch/Metric Metric
End Of Tool Shape Ball Nose
Neck Length 1.0236 26.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
