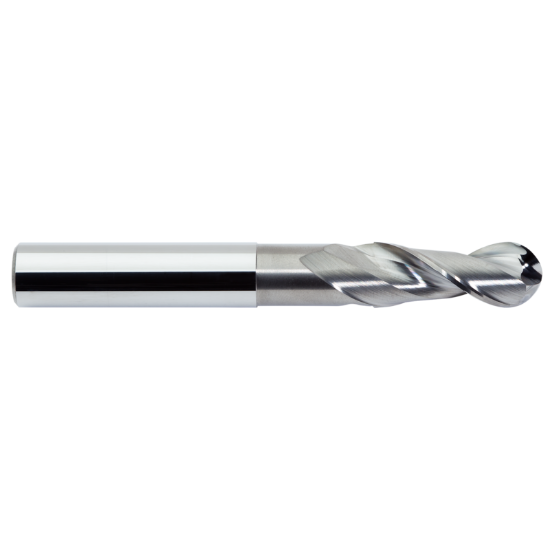

M.A. FORD 135B2362N5 DIA 6MM SH 0.2362 LOC 0.3150 OAL 4.3307 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13260
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Copy Milling, Side Milling
Package Size 1
Performance Rating High Performance
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Dimension Description 0.236 x 0.236 x 0.315 x 4.331
Cutter Dia 0.2362 6.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Neck Length 1.2598 32.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 4.3307 110.00MM
Flutes/Inserts 2
Inch/Metric Metric
Machine Side Connection Size 0.2362 6.00MM
Length Of Cut 0.3150 8.00MM
Length Type Standard / With Neck
Helix Angle 37°
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
