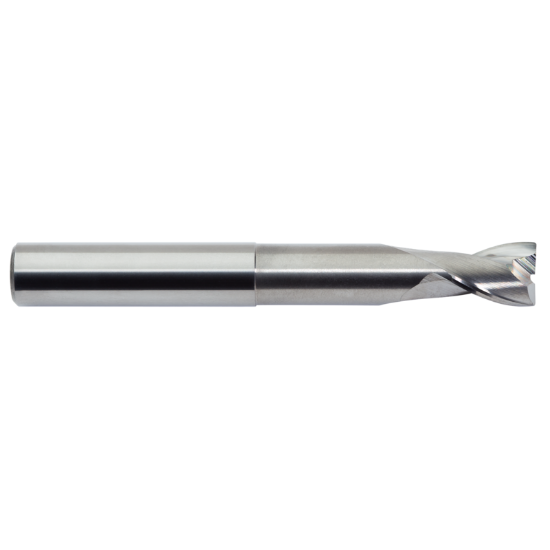

M.A. FORD 13578740N DIA 20MM SH 0.7874 LOC 0.8661 OAL 4.0157 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0295 0.75MM TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13594
Delivery date: 3-5 days
$268.52

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling, Face Milling, Side Milling
Shipping State Iowa
Package Size 1
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.8660 22.00MM
Shank/Pilot Dia 0.7874 20.00MM
End Of Tool Shape Corner Radius
Dimension Description 0.787 x 0.787 x 0.866 x 4.016
Length Type Standard / With Neck
Corner Radius 0.0295 0.75MM
Overall Len 4.0157 102.00MM
Inch/Metric Metric
Single/Double End Single End
Machine Side Connection Size 0.7874 20.00MM
Helix Angle 30°
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 2
Neck Length 1.9685 50.00MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
