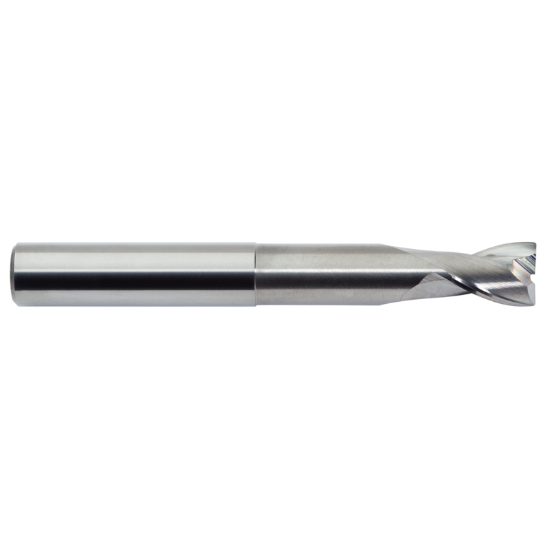

M.A. FORD 13519680N DIA 5MM SH 0.1969 LOC 0.2362 OAL 2.0079 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0098 0.25MM TuffCut® AL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF13503
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Profile Milling, Face Milling, Copy Milling, Side Milling
Package Size 1
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.1969 5.00MM
Shank/Pilot Dia 0.1969 5.00MM
Length Type Standard / With Neck
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Corner Radius
Inch/Metric Metric
Single/Double End Single End
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.2362 6.00MM
Neck Length 0.8661 22.00MM
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0098 0.25MM
Overall Len 2.0079 51.00MM
Helix Angle 30°
Dimension Description 0.197 x 0.197 x 0.236 x 2.008
Flutes/Inserts 2
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
