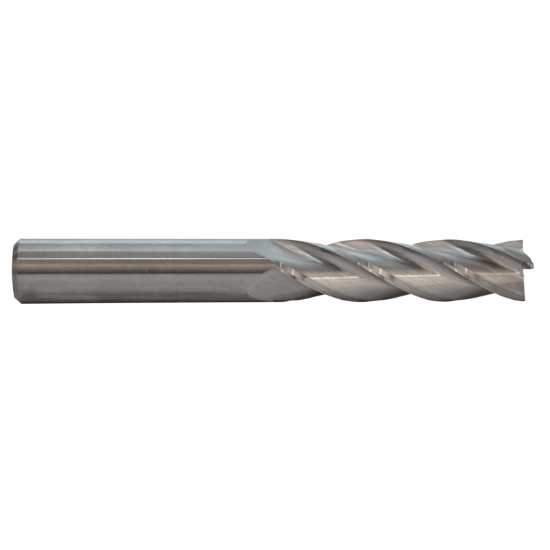

M.A. FORD 12250000R.005 DIA 1/2 SH 0.50 LOC 2.00 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0050 0.13MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF76990
Delivery date: 3-5 days
$87.57

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Iowa
Application Face Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Flutes/Inserts 4
Dimension Description 0.500 x 0.500 x 2.000 x 4.000
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.5000 12.70MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Machine Side Connection Type Cylindrical
Overall Len 4.0000 101.60MM
Length Of Cut 2.0000 50.80MM
Helix Angle 30°
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Inch/Metric Inch
Corner Radius 0.0050 0.13MM
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
