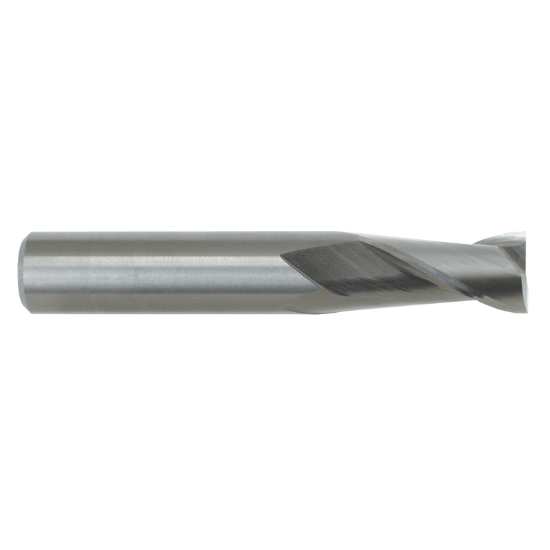

M.A. FORD 12198435 DIA 25MM SH 0.9843 LOC 1.5748 OAL 4.0157 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0787 2.00MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF52474
Delivery date: 3-5 days
$280.07

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Side Milling, Profile Milling, Slot Milling
Package Size 1
Made In USA Yes
Performance Rating General Performance
Shipping State Iowa
Dimensional Specifications
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.9844 25.00MM - 63/64
Inch/Metric Metric
Single/Double End Single End
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 2
Length Type Standard
Helix Angle 30°
Dimension Description 0.984 x 0.984 x 1.575 x 4.016
Corner Radius 0.0787 2.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 4.0157 102.00MM
Length Of Cut 1.5748 40.00MM
End Of Tool Shape Corner Radius
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
