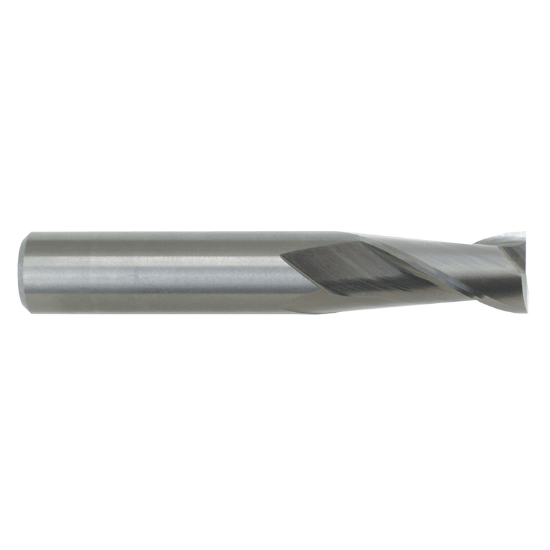

M.A. FORD 12178747 DIA 20MM SH 0.7874 LOC 1.4961 OAL 4.0157 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.1181 3.00MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF52484
Delivery date: 3-5 days
$217.84

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Slot Milling, Face Milling, Profile Milling
Shipping State Iowa
Made In USA Yes
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.7874 20.00MM
Length Of Cut 1.4961 38.00MM
Helix Angle 30°
Dimension Description 0.787 x 0.787 x 1.496 x 4.016
Corner Radius 0.1181 3.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.7874 20.00MM
End Of Tool Shape Corner Radius
Overall Len 4.0157 102.00MM
Single/Double End Single End
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 2
Length Type Standard
Inch/Metric Metric
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
