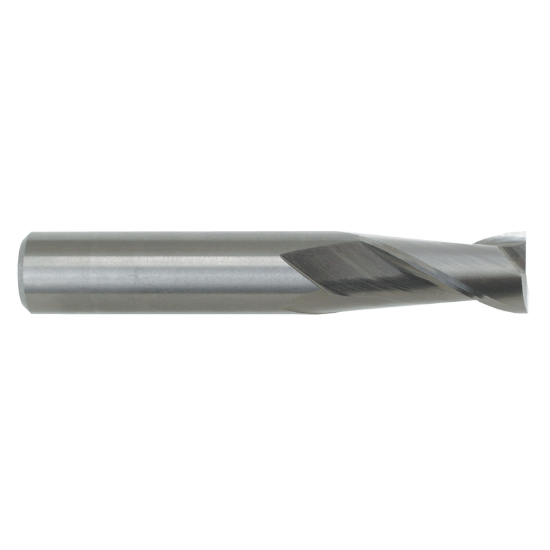

M.A. FORD 12131502 DIA 8MM SH 0.3150 LOC 0.7874 OAL 2.5197 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0295 0.75MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF52428
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling
Package Size 1
Made In USA Yes
Shipping State Iowa
Performance Rating General Performance
Dimensional Specifications
Corner Radius 0.0295 0.75MM
Cutter Dia 0.3150 8.00MM
Inch/Metric Metric
Single/Double End Single End
Overall Len 2.5197 64.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
End Of Tool Shape Corner Radius
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Machine Side Connection Size 0.3150 8.00MM
Length Of Cut 0.7874 20.00MM
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.315 x 0.315 x 0.787 x 2.520
Flutes/Inserts 2
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
