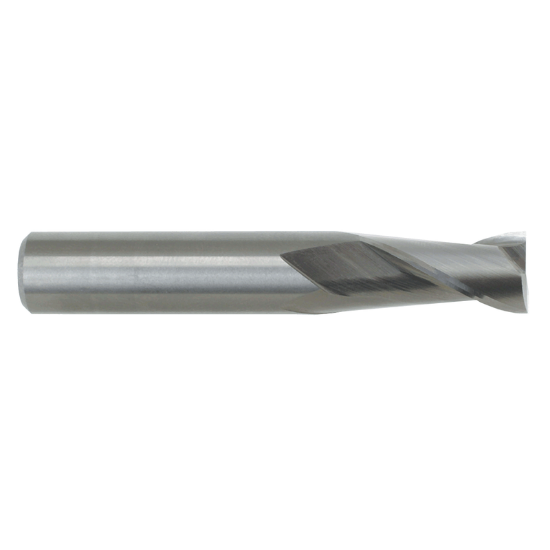

M.A. FORD 12113780R.016 DIA 3.50MM SH 0.1575 LOC 0.4724 OAL 2.007 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0160 0.41MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF18077
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Copy Milling, Face Milling, Profile Milling
Performance Rating General Performance
Package Size 1
Made In USA Yes
Shipping State Iowa
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.0079 51.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Corner Radius 0.0160 0.41MM
Length Type Standard
Cutter Dia 0.1377 3.50MM
Flutes/Inserts 2
Length Of Cut 0.4724 12.00MM
Inch/Metric Metric
Cutter Style Carbide Bull Nose Finisher
Helix Angle 30°
Dimension Description 0.138 x 0.157 x 0.472 x 2.008
Machine Side Connection Size 0.1575 4.00MM
Shank/Pilot Dia 0.1574 4.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
