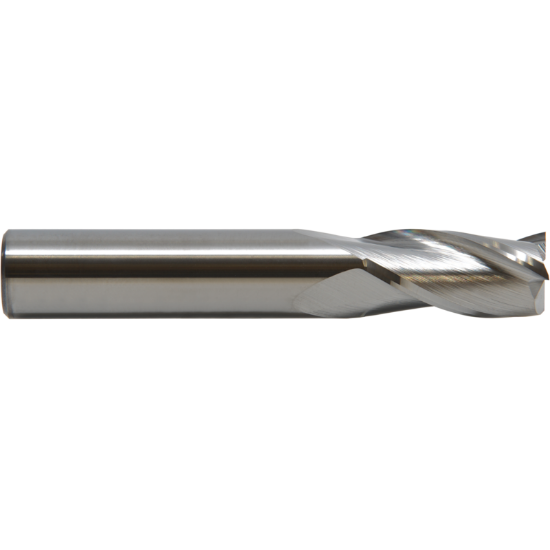

M.A. FORD 11612500R.005F DIA 1/8 SH 0.1250 LOC 0.3750 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Corner Radius 0.0050 0.13MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF16234
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Fordlube Titanium DiBoride (TiB2) is a unique coating with a low aluminum affinity, smooth surface finish and high hardness.

Products specifications
Attribute name Attribute value
General Product Information
Coating Fordlube
Performance Rating General Performance
Application Side Milling, Profile Milling, Slot Milling, Copy Milling, Face Milling
Made In USA Yes
Package Size 1
Shipping State Iowa
Dimensional Specifications
Dimension Description 0.125 x 0.125 x 0.375 x 1.500
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.1250 3.18MM - 1/8
Helix Angle 30°
Corner Radius 0.0050 0.13MM
Length Type Standard
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
End Of Tool Shape Corner Radius
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
