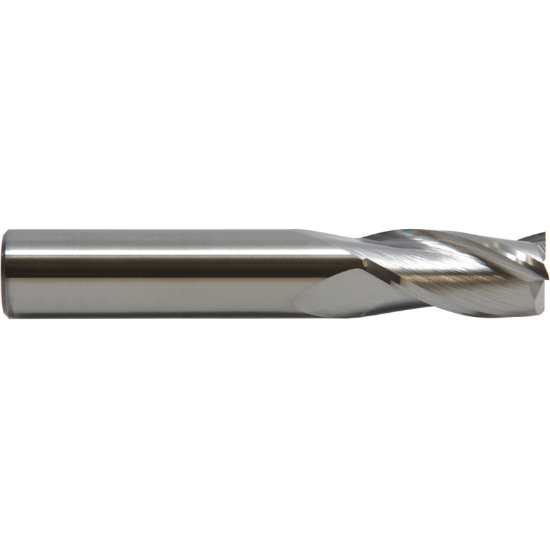

M.A. FORD 11609370R.020 DIA 3/32 SH 0.1250 LOC 0.2812 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0200 0.51MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF16118
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Face Milling, Profile Milling, Side Milling, Slot Milling, Copy Milling
Shipping State Iowa
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Corner Radius 0.0200 0.51MM
Helix Angle 30°
End Of Tool Shape Corner Radius
Single/Double End Single End
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Dimension Description 0.094 x 0.125 x 0.281 x 1.500
Cutter Dia 0.0938 2.38MM - 3/32
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.2813 7.15MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
