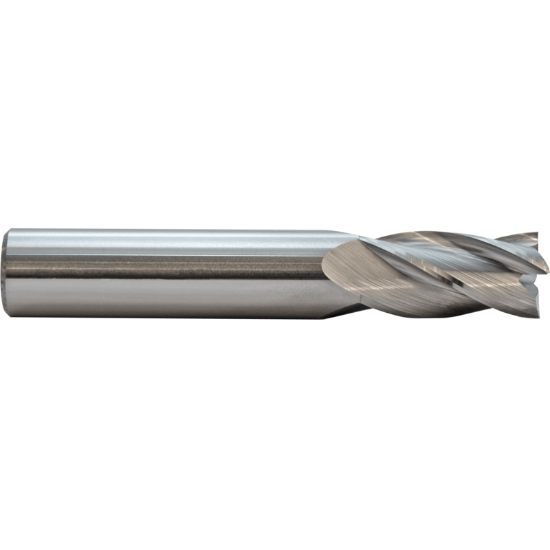

M.A. FORD 11198431 DIA 25MM SH 0.9843 LOC 1.5748 OAL 4.0157 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0197 0.50MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF51420
Delivery date: 3-5 days
$280.07

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Made In USA Yes
Shipping State Iowa
Performance Rating General Performance
Dimensional Specifications
Cutter Dia 0.9844 25.00MM - 63/64
Inch/Metric Metric
Length Of Cut 1.5748 40.00MM
Helix Angle 30°
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Size 0.9843 25.00MM
Corner Radius 0.0197 0.50MM
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dimension Description 0.984 x 0.984 x 1.575 x 4.016
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 4.0157 102.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
