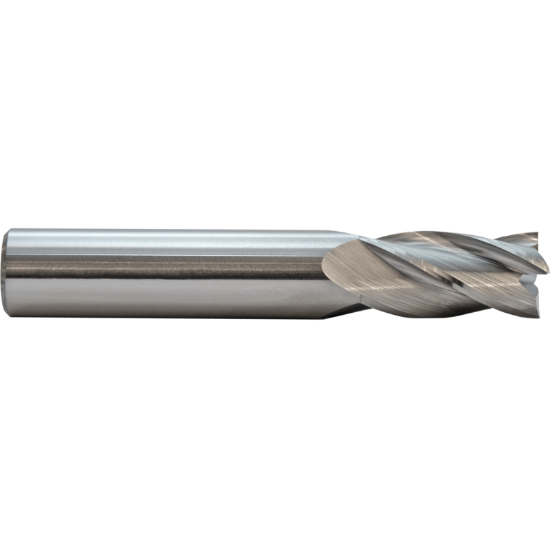

M.A. FORD 11175007GP DIA 3/4 SH 0.7500 LOC 1.50 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Gem Plus Single End Corner Radius 0.1250 3.18MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF18069
Delivery date: 3-5 days
$214.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating Gem Plus
Performance Rating General Performance
Application Slot Milling, Face Milling, Profile Milling, Copy Milling, Side Milling
Shipping State Iowa
Made In USA Yes
Package Size 1
Dimensional Specifications
Dimension Description 0.750 x 0.750 x 1.500 x 4.000
Length Type Standard
Corner Radius 0.1250 3.18MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
End Of Tool Shape Corner Radius
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.0000 101.60MM
Helix Angle 30°
Flutes/Inserts 4
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
