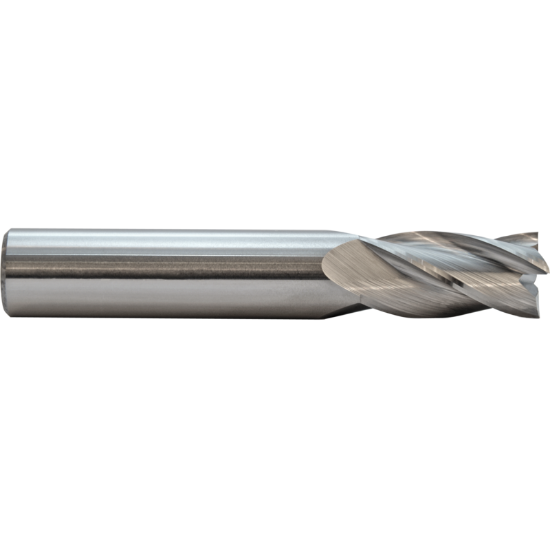

M.A. FORD 11162995 DIA 16MM SH 0.6299 LOC 1.1811 OAL 3.5039 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0787 2.00MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF51470
Delivery date: 3-5 days
$104.01

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Iowa
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Length Of Cut 1.1811 30.00MM
Inch/Metric Metric
Tool Material Carbide
Machine Side Connection Type Cylindrical
Helix Angle 30°
Cutter Dia 0.6299 16.00MM
Cutter Style Carbide Bull Nose Finisher
Flutes/Inserts 4
Length Type Standard
Dimension Description 0.630 x 0.630 x 1.181 x 3.504
Corner Radius 0.0787 2.00MM
Overall Len 3.5039 89.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
