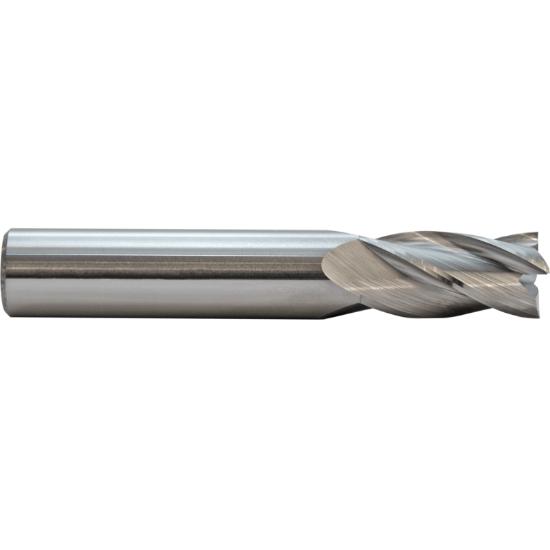

M.A. FORD 11147243 DIA 12MM SH 0.4724 LOC 0.9843 OAL 2.9921 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 1.0000 25.40MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF51448
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Copy Milling, Side Milling, Slot Milling
Shipping State Iowa
Performance Rating General Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Length Type Standard
Corner Radius 1.0000 25.40MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutter Dia 0.4724 12.00MM
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.472 x 0.472 x 0.984 x 2.992
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 2.9921 76.00MM
Length Of Cut 0.9843 25.00MM
Helix Angle 30°
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 4
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
