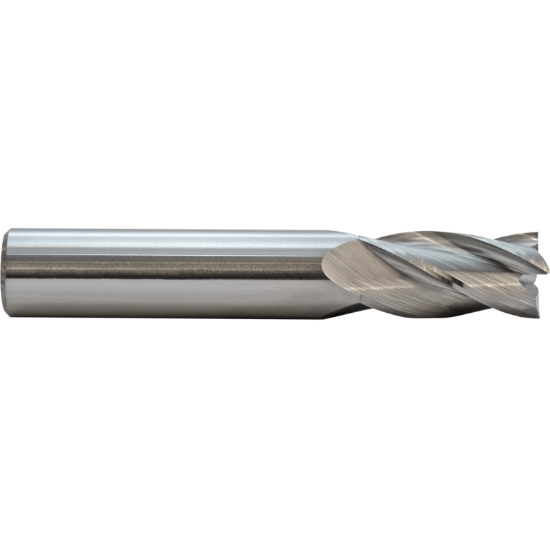

M.A. FORD 11139372 DIA 10MM SH 0.3937 LOC 0.9843 OAL 2.7559 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0295 0.75MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF51430
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Slot Milling, Face Milling, Profile Milling, Copy Milling, Side Milling
Package Size 1
Shipping State Iowa
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.3937 10.00MM
Dimension Description 0.394 x 0.394 x 0.984 x 2.756
Cutter Style Carbide Bull Nose Finisher
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
End Of Tool Shape Corner Radius
Corner Radius 0.0295 0.75MM
Single/Double End Single End
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 2.7560 70.00MM
Length Of Cut 0.9843 25.00MM
Helix Angle 30°
Flutes/Inserts 4
Length Type Standard
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
