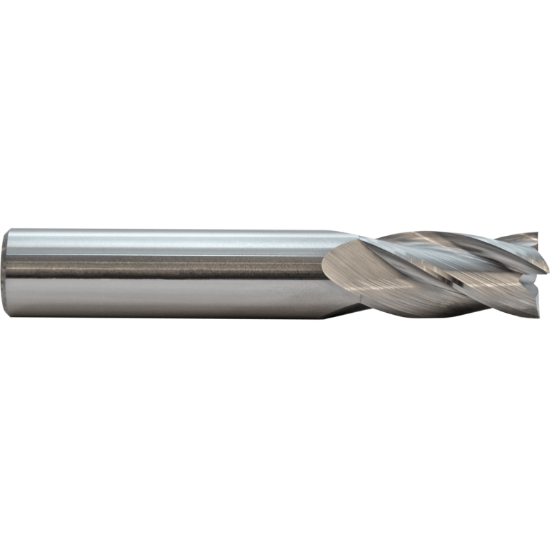

M.A. FORD 11110930R.016 DIA 7/64 SH 0.1250 LOC 0.3750 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0160 0.41MM TuffCut® GP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF76897
Delivery date: 3-5 days
$16.55

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Slot Milling, Side Milling, Face Milling, Profile Milling, Copy Milling
Shipping State Iowa
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Flutes/Inserts 4
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
End Of Tool Shape Corner Radius
Cutter Dia 0.1094 2.78MM - 7/64
Overall Len 1.5000 38.10MM
Cutter Style Carbide Bull Nose Finisher
Length Of Cut 0.3750 9.53MM
Helix Angle 30°
Single/Double End Single End
Dimension Description 0.109 x 0.125 x 0.375 x 1.500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.0160 0.41MM
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
