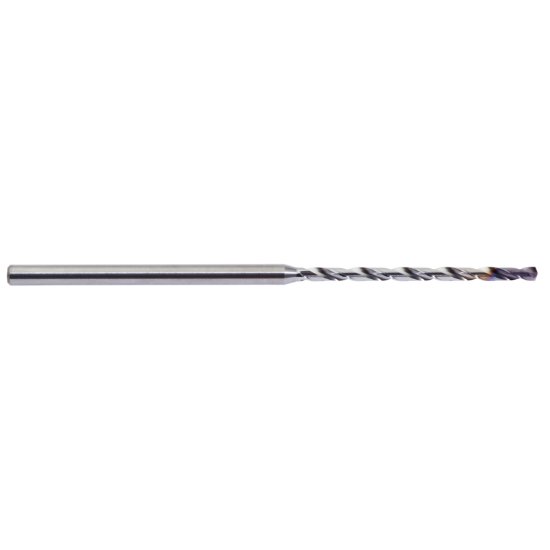

Picture of M.A. Ford MXDCLM0205A Carbide Drill Coolant Thru Carbide 138° 0.080 Dia 0.118 Shank 2.952 OAL 2 Flute 1.299 Flute Length Carbide AlTiN

M.A. Ford MXDCLM0205A Carbide Drill Coolant Thru Carbide 138° 0.080 Dia 0.118 Shank 2.952 OAL 2 Flute 1.299 Flute Length Carbide AlTiN

Part Number: MAF04855 ISO: MXDCLM0205A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1119086
Vendor: Sussex Tool and Supply
$96.33
M.A. FORD MXDCLM0205A 2.05MM X 33 ALTIMA DRILL Carbide AlTiN Twister® Flute 1.2990 32.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.1181 3.00MM
Overall Length 2.9528 75.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.0807 2.05MM
Type Of Tool Drill
Included Angle 138°
Flute Length 1.2990 32.99MM
Cut Dia Min 0.0807 2.05MM
Drill Length Type Standard
