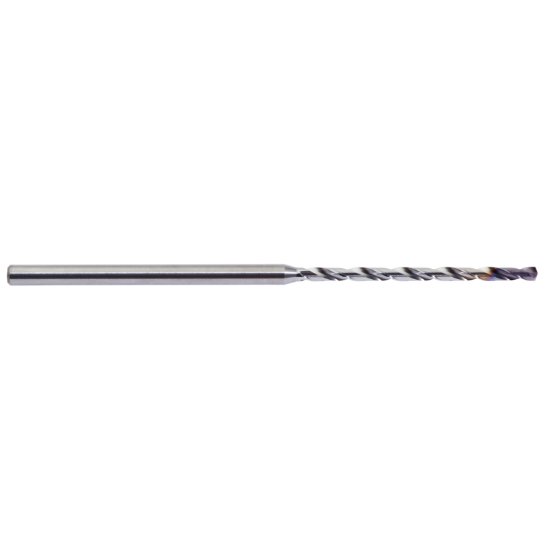

Picture of M.A. Ford MXDCLM0135A Carbide Drill Coolant Thru Carbide 138° 0.053 Dia 0.118 Shank 2.559 OAL 2 Flute 0.866 Flute Length Carbide AlTiN

M.A. Ford MXDCLM0135A Carbide Drill Coolant Thru Carbide 138° 0.053 Dia 0.118 Shank 2.559 OAL 2 Flute 0.866 Flute Length Carbide AlTiN

Part Number: MAF04841 ISO: MXDCLM0135A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1119072
Vendor: Sussex Tool and Supply
$96.33
M.A. FORD MXDCLM0135A 1.35MM X 22 ALTIMA DRILL Carbide AlTiN Twister® Flute 0.8660 22.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.1181 3.00MM
Overall Length 2.5591 65.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.0532 1.35MM
Type Of Tool Drill
Included Angle 138°
Flute Length 0.8660 22.00MM
Cut Dia Min 0.0532 1.35MM
Drill Length Type Standard
