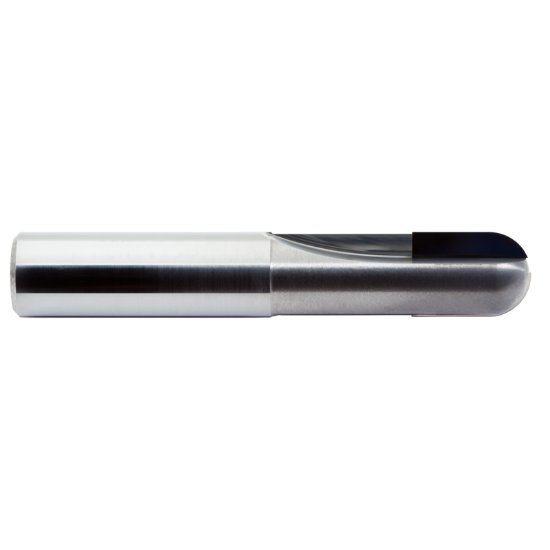

Picture of M.A. Ford DE2B6250 Dia 5/8 SH 0.6250 LOC 0.8750 OAL3.50 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball NoseBall

M.A. Ford DE2B6250 Dia 5/8 SH 0.6250 LOC 0.8750 OAL3.50 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball NoseBall

Part Number: MAF90124 0.625 x 0.625 x 0.875 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1244025
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
M.A. FORD DE2B6250 Standard Helix End Mill PCD Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End M.A. Ford® PCD PCD
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material PCD
Cutting Edge Mat PCD
Machine Side Connection Type Cylindrical
Cut Rating Fiberglass, Graphite
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.8750 22.23MM
End Of Tool Shape Ball Nose
Cutter Style PCD Ball
Single/Double End Single End
Inch/Metric Inch
Helix Angle 0
Center Cutting Center Cutting
