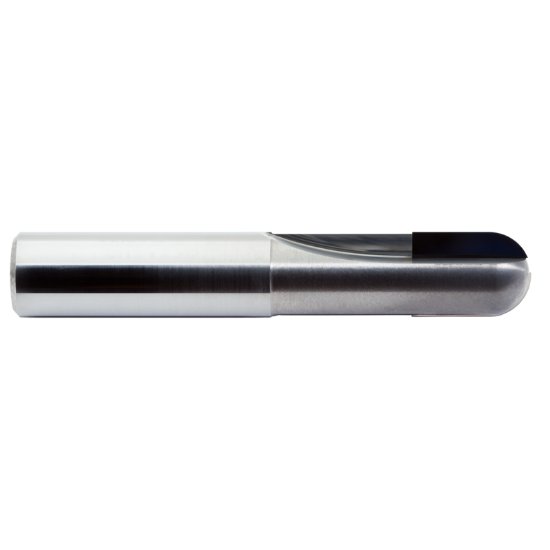

Picture of M.A. Ford DE1BM0500 Dia 5mm SH 0.1969 LOC 0.3150 OAL1.9685 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball NoseBall

M.A. Ford DE1BM0500 Dia 5mm SH 0.1969 LOC 0.3150 OAL1.9685 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball NoseBall

Part Number: MAF90128 0.197 x 0.197 x 0.315 x 1.969

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1244021
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
M.A. FORD DE1BM0500 Standard Helix End Mill PCD Uncoated Ball Nose Ball Standard Flute Flutes 1 Single End M.A. Ford® PCD PCD
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material PCD
Cutting Edge Mat PCD
Machine Side Connection Type Cylindrical
Cut Rating Fiberglass, Graphite
Mach Side Connection Size 0.1969 5.00MM
Overall Length 1.9685 50.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1969 5.00MM
Flutes/Inserts 1
Tool Dia 0.1969 5.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3150 8.00MM
End Of Tool Shape Ball Nose
Cutter Style PCD Ball
Single/Double End Single End
Inch/Metric Metric
Helix Angle 0
Center Cutting Center Cutting
