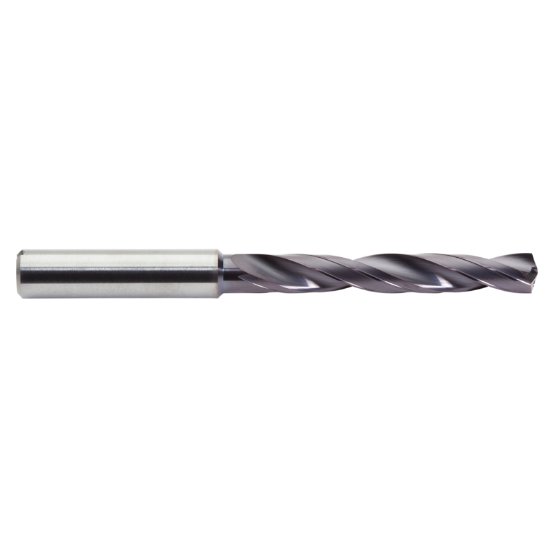

Picture of M.A. Ford CXDCR2969AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.296 Dia 0.312 Shank 3.580 OAL 2 Flute 2.087 Flute Length Carbide AlTiN

M.A. Ford CXDCR2969AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.296 Dia 0.312 Shank 3.580 OAL 2 Flute 2.087 Flute Length Carbide AlTiN

Part Number: MAF06992 ISO: CXDCR2969AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118536
Vendor: Sussex Tool and Supply
$118.11
M.A. FORD CXDCR2969AP CXD DRL 19/64 COOL REG Carbide AlTiN Cyclone XD 5.0XD Flute 2.0870 53.01MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.3125 7.94MM
Overall Length 3.5800 90.93MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 2
Tool Dia 0.2969 7.54MM - 19/64
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.0870 53.01MM
Cut Dia Min 0.2969 7.54MM - 19/64
Dia Deep 5.0x Dia
Multi Spindle Yes
