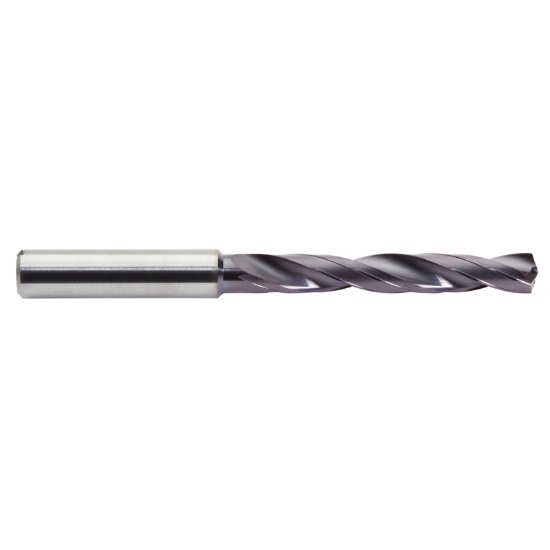

Picture of M.A. Ford CXDCR2031AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.203 Dia 0.250 Shank 3.230 OAL 2 Flute 1.732 Flute Length Carbide AlTiN

M.A. Ford CXDCR2031AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.203 Dia 0.250 Shank 3.230 OAL 2 Flute 1.732 Flute Length Carbide AlTiN

Part Number: MAF06958 ISO: CXDCR2031AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118525
Vendor: Sussex Tool and Supply
$89.52
M.A. FORD CXDCR2031AP CXD DRL 13/64 COOL REG Carbide AlTiN Cyclone XD 5.0XD Flute 1.7320 43.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 3.2300 82.04MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.2031 5.16MM - 13/64
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 1.7320 43.99MM
Cut Dia Min 0.2031 5.16MM - 13/64
Dia Deep 5.0x Dia
Multi Spindle Yes
