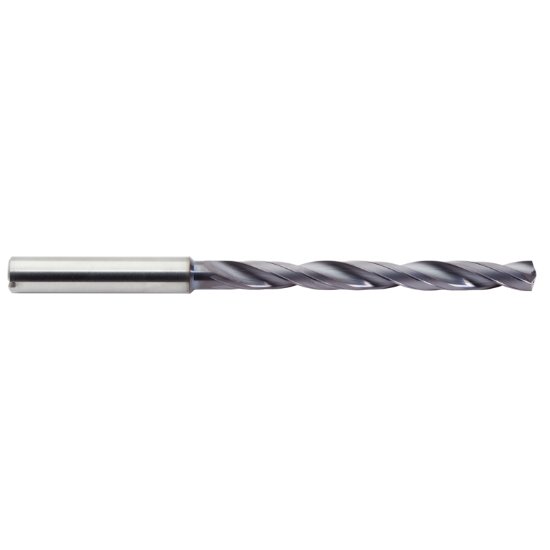

Picture of M.A. Ford CXDCLM0590AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.232 Dia 0.236 Shank 3.937 OAL 2 Flute 2.244 Flute Length Carbide AlTiN

M.A. Ford CXDCLM0590AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.232 Dia 0.236 Shank 3.937 OAL 2 Flute 2.244 Flute Length Carbide AlTiN

Part Number: MAF07140 ISO: CXDCLM0590AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118318
Vendor: Sussex Tool and Supply
$111.71
M.A. FORD CXDCLM0590AP CXD 5.9MM 8X COOLANT DRL Carbide AlTiN Cyclone XD 8.0XD Flute 2.2440 57.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 3.9370 100.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.2323 5.90MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.2440 57.00MM
Cut Dia Min 0.2323 5.90MM
Dia Deep 8.0x Dia
Multi Spindle Yes
