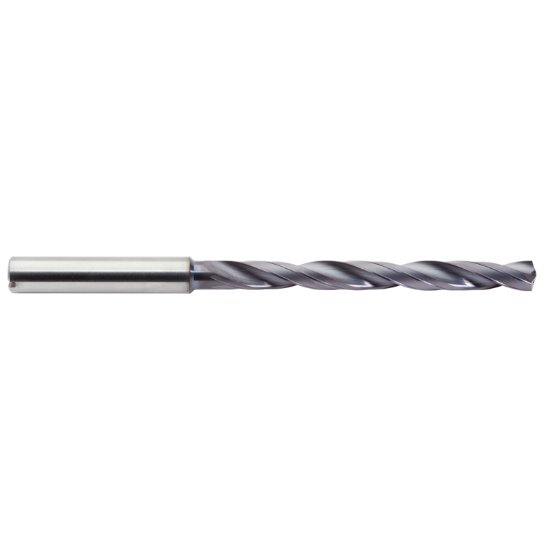

Picture of M.A. Ford CXDCLM0465AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.183 Dia 0.196 Shank 3.937 OAL 2 Flute 1.772 Flute Length Carbide AlTiN

M.A. Ford CXDCLM0465AP Carbide Drill Coolant Thru Carbide 140° - 142° 0.183 Dia 0.196 Shank 3.937 OAL 2 Flute 1.772 Flute Length Carbide AlTiN

Part Number: MAF07123 ISO: CXDCLM0465AP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118305
Vendor: Sussex Tool and Supply
$102.77
M.A. FORD CXDCLM0465AP CXD 4.65MM 8X COOLANT Carbide AlTiN Cyclone XD 8.0XD Flute 1.7720 45.01MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.1969 5.00MM
Overall Length 3.9370 100.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1969 5.00MM
Flutes/Inserts 2
Tool Dia 0.1831 4.65MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 1.7720 45.01MM
Cut Dia Min 0.1831 4.65MM
Dia Deep 8.0x Dia
Multi Spindle Yes
