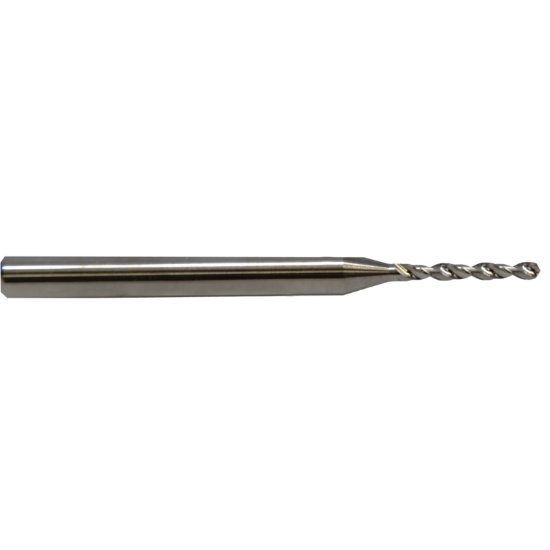

Picture of M.A. Ford Circuit Board Solid Carbide 130° 0.015 Dia 0.125 Shank 1.496 OAL 2 Flute 0.189 Flute Length Carbide

M.A. Ford Circuit Board Solid Carbide 130° 0.015 Dia 0.125 Shank 1.496 OAL 2 Flute 0.189 Flute Length Carbide

Part Number: MAF30201570C ISO: 30201570C
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1117769

Description

M.A. FORD 30201570C CB-DRILL 1.500 LOA COLLAR Carbide Uncoated Twister® GP Flute 0.1890 4.80MM Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Circuit Board Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Length Type Stub
Dimensions & Sizing
Overall Length 1.4960 38.00MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 2
Tool Dia 0.0157 0.40MM
Flute Length 0.1890 4.80MM
Geometry & Angles
Included Angle 130°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.0157 0.40MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
