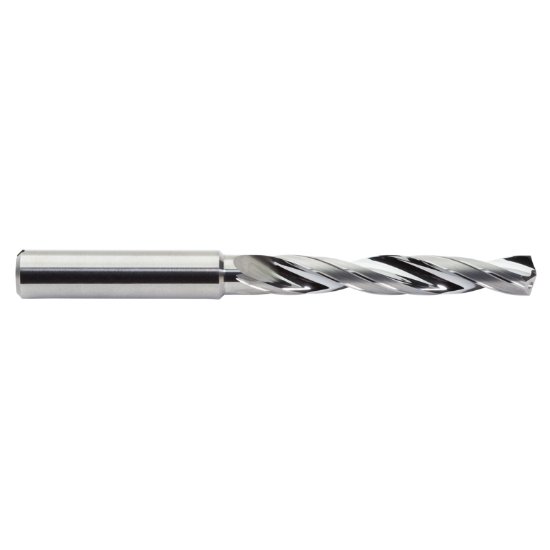

Picture of M.A. Ford CDACRM1170 Carbide Drill Coolant Thru Carbide 140° - 142° 0.460 Dia 0.472 Shank 4.645 OAL 2 Flute 2.795 Flute Length Carbide

M.A. Ford CDACRM1170 Carbide Drill Coolant Thru Carbide 140° - 142° 0.460 Dia 0.472 Shank 4.645 OAL 2 Flute 2.795 Flute Length Carbide

Part Number: MAF07433 ISO: CDACRM1170

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118181
Vendor: Sussex Tool and Supply
$180.10
M.A. FORD CDACRM1170 11.7MM X 71 X 118COOLANT Carbide Uncoated Cyclone 5.0XD Flute 2.7950 70.99MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Brass, Copper, Plastic
Mach Side Connection Size 0.4724 12.00MM
Overall Length 4.6457 118.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4606 11.70MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.7950 70.99MM
Cut Dia Min 0.4606 11.70MM
Dia Deep 5.0x Dia
Multi Spindle Yes
