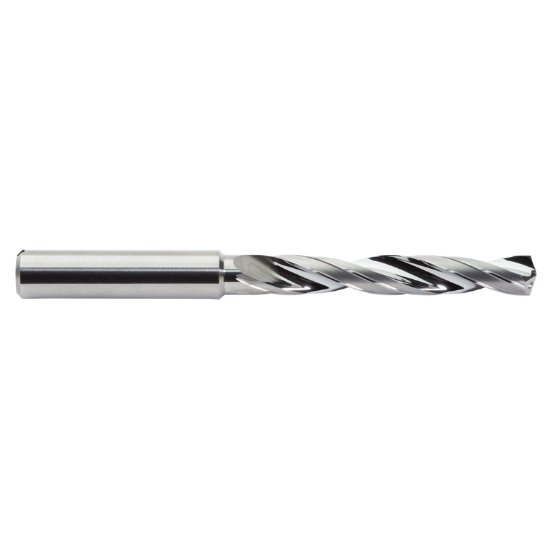

Picture of M.A. Ford CDACRM0900 Carbide Drill Coolant Thru Carbide 140° - 142° 0.354 Dia 0.393 Shank 4.055 OAL 2 Flute 2.402 Flute Length Carbide

M.A. Ford CDACRM0900 Carbide Drill Coolant Thru Carbide 140° - 142° 0.354 Dia 0.393 Shank 4.055 OAL 2 Flute 2.402 Flute Length Carbide

Part Number: MAF07382 ISO: CDACRM0900

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118154
Vendor: Sussex Tool and Supply
$129.06
M.A. FORD CDACRM0900 9.0MM X 61 X 103 COOLANT Carbide Uncoated Cyclone 5.0XD Flute 2.4020 61.01MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Brass, Copper, Plastic
Mach Side Connection Size 0.3937 10.00MM
Overall Length 4.0551 103.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3543 9.00MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.4020 61.01MM
Cut Dia Min 0.3543 9.00MM
Dia Deep 5.0x Dia
Multi Spindle Yes
