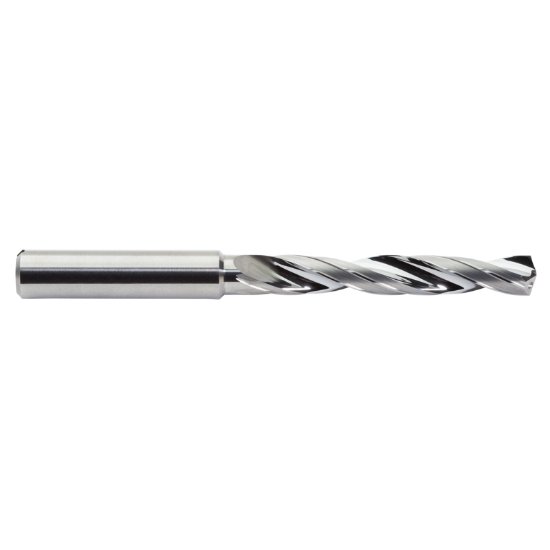

Picture of M.A. Ford CDACRM0680 Carbide Drill Coolant Thru Carbide 140° - 142° 0.267 Dia 0.315 Shank 3.582 OAL 2 Flute 2.087 Flute Length Carbide

M.A. Ford CDACRM0680 Carbide Drill Coolant Thru Carbide 140° - 142° 0.267 Dia 0.315 Shank 3.582 OAL 2 Flute 2.087 Flute Length Carbide

Part Number: MAF07363 ISO: CDACRM0680

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118132
Vendor: Sussex Tool and Supply
$95.30
M.A. FORD CDACRM0680 6.8MM X 53 X 91 COOLANT Carbide Uncoated Cyclone 5.0XD Flute 2.0870 53.01MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Brass, Copper, Plastic
Mach Side Connection Size 0.3150 8.00MM
Overall Length 3.5827 91.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2677 6.80MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.0870 53.01MM
Cut Dia Min 0.2677 6.80MM
Dia Deep 5.0x Dia
Multi Spindle Yes
