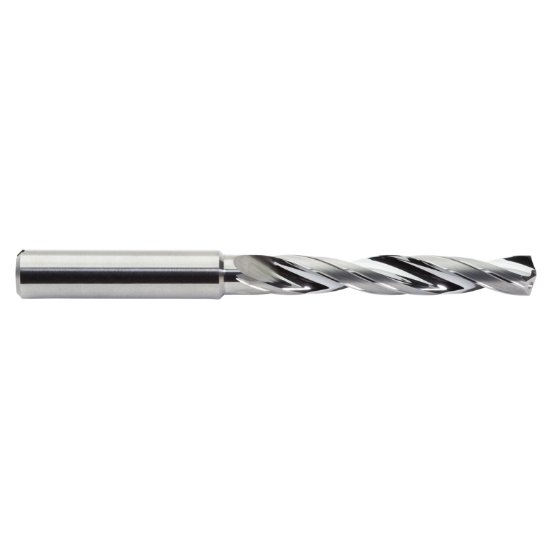

Picture of M.A. Ford CDACR4688 Carbide Drill Coolant Thru Carbide 140° - 142° 0.468 Dia 0.472 Shank 4.650 OAL 2 Flute 2.795 Flute Length Carbide

M.A. Ford CDACR4688 Carbide Drill Coolant Thru Carbide 140° - 142° 0.468 Dia 0.472 Shank 4.650 OAL 2 Flute 2.795 Flute Length Carbide

Part Number: MAF07400 ISO: CDACR4688

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118091
Vendor: Sussex Tool and Supply
$180.10
M.A. FORD CDACR4688 .4688 X 2.795 X 4.65 LOA Carbide Uncoated Cyclone 5.0XD Flute 2.7950 70.99MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Brass, Copper, Plastic
Mach Side Connection Size 0.4724 12.00MM
Overall Length 4.6500 118.11MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4688 11.91MM - 15/32
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.7950 70.99MM
Cut Dia Min 0.4688 11.91MM - 15/32
Dia Deep 5.0x Dia
Multi Spindle Yes
