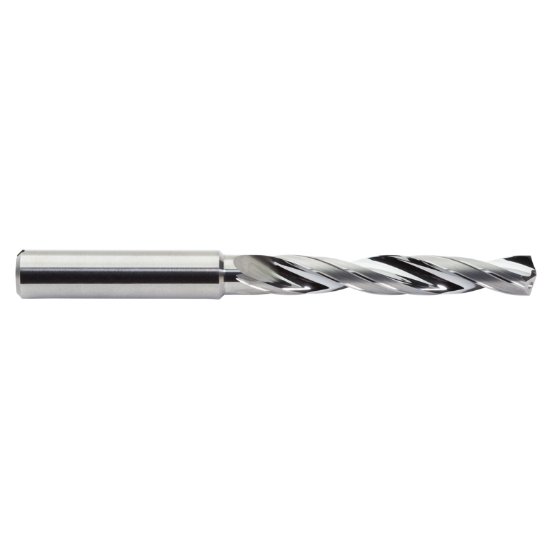

Picture of M.A. Ford CDACR4531 Carbide Drill Coolant Thru Carbide 140° - 142° 0.453 Dia 0.472 Shank 4.650 OAL 2 Flute 2.795 Flute Length Carbide

M.A. Ford CDACR4531 Carbide Drill Coolant Thru Carbide 140° - 142° 0.453 Dia 0.472 Shank 4.650 OAL 2 Flute 2.795 Flute Length Carbide

Part Number: MAF07399 ISO: CDACR4531

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1118090
Vendor: Sussex Tool and Supply
$180.10
M.A. FORD CDACR4531 .4531 X 2.795 X 4.65 LOA Carbide Uncoated Cyclone 5.0XD Flute 2.7950 70.99MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Brass, Copper, Plastic
Mach Side Connection Size 0.4724 12.00MM
Overall Length 4.6500 118.11MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4531 11.51MM - 29/64
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.7950 70.99MM
Cut Dia Min 0.4531 11.51MM - 29/64
Dia Deep 5.0x Dia
Multi Spindle Yes
