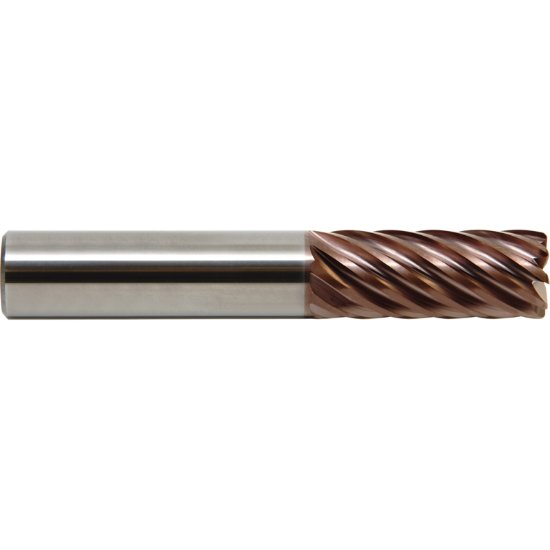

Picture of M.A. Ford 380M1200-0.5RAX Dia 12mm SH 0.4724 LOC 1.2598 OAL3.3071 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm TuffCut® XT9

M.A. Ford 380M1200-0.5RAX Dia 12mm SH 0.4724 LOC 1.2598 OAL3.3071 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm TuffCut® XT9

Part Number: MAF38026 12.000MMx12.000MMx32.000MMx84.00MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1243912
Vendor: Sussex Tool and Supply
$117.53
M.A. FORD 380M1200-0.5RAX Standard Helix End Mill Carbide AlTiN Corner Radius 0.0197 0.50MM Standard Flute Flutes 9 Single End TuffCut® XT9 Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.4724 12.00MM
Overall Length 3.3071 84.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 9
Tool Dia 0.4724 12.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.2600 32.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0197 0.50MM
Inch/Metric Metric
Helix Angle 37
Center Cutting Center Cutting
