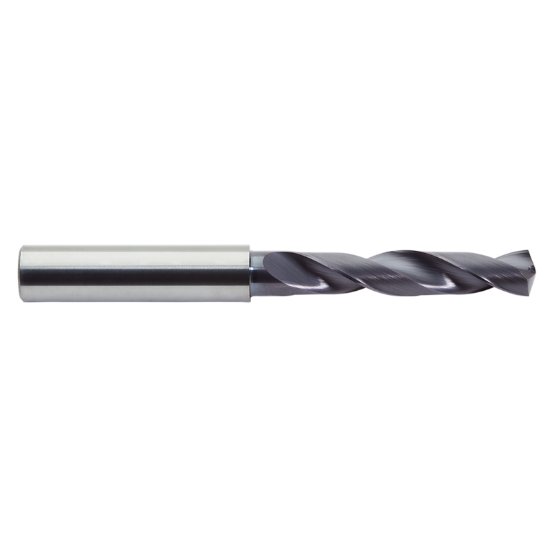

Picture of M.A. Ford 2XDSS6102A Carbide Drill Solid Carbide 140° - 142° 0.610 Dia 0.629 Shank 4.606 OAL 2 Flute 2.362 Flute Length Carbide AlTiN

M.A. Ford 2XDSS6102A Carbide Drill Solid Carbide 140° - 142° 0.610 Dia 0.629 Shank 4.606 OAL 2 Flute 2.362 Flute Length Carbide AlTiN

Part Number: MAF02310 ISO: 2XDSS6102A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1117490
Vendor: Sussex Tool and Supply
$213.06
M.A. FORD 2XDSS6102A DRILL 15.5MM SOLID STUB Carbide AlTiN Twister XD® 3.0XD Flute 2.3620 59.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 4.6062 117.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.6102 15.50MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.3620 59.99MM
Cut Dia Min 0.6102 15.50MM
Dia Deep 3.0x Dia
