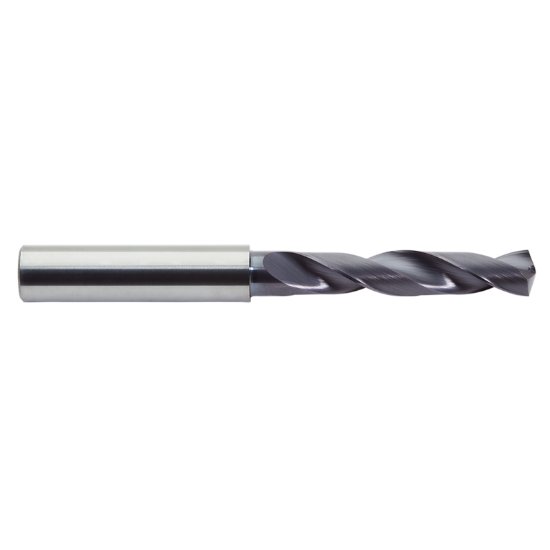

Picture of M.A. Ford 2XDSS5905A Carbide Drill Solid Carbide 140° - 142° 0.590 Dia 0.629 Shank 4.606 OAL 2 Flute 2.362 Flute Length Carbide AlTiN

M.A. Ford 2XDSS5905A Carbide Drill Solid Carbide 140° - 142° 0.590 Dia 0.629 Shank 4.606 OAL 2 Flute 2.362 Flute Length Carbide AlTiN

Part Number: MAF02306 ISO: 2XDSS5905A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1117487
Vendor: Sussex Tool and Supply
$213.06
M.A. FORD 2XDSS5905A DRILL 15.0MM SOLID STUB Carbide AlTiN Twister XD® 3.0XD Flute 2.3620 59.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 4.6062 117.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5906 15.00MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.3620 59.99MM
Cut Dia Min 0.5906 15.00MM
Dia Deep 3.0x Dia
