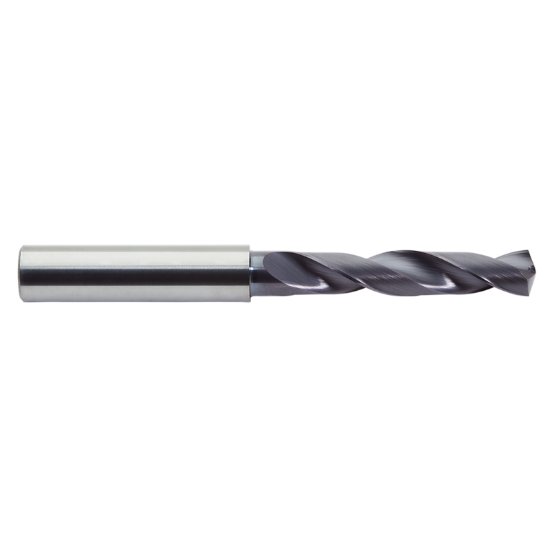

Picture of M.A. Ford 2XDSS4488A Carbide Drill Solid Carbide 140° - 142° 0.448 Dia 0.472 Shank 3.976 OAL 2 Flute 2.008 Flute Length Carbide AlTiN

M.A. Ford 2XDSS4488A Carbide Drill Solid Carbide 140° - 142° 0.448 Dia 0.472 Shank 3.976 OAL 2 Flute 2.008 Flute Length Carbide AlTiN

Part Number: MAF04004 ISO: 2XDSS4488A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1117458
Vendor: Sussex Tool and Supply
$130.31
M.A. FORD 2XDSS4488A DRILL 11.4MM SOLID STUB Carbide AlTiN Twister XD® 3.0XD Flute 2.0080 51.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.4724 12.00MM
Overall Length 3.9763 101.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4488 11.40MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.0080 51.00MM
Cut Dia Min 0.4488 11.40MM
Dia Deep 3.0x Dia
