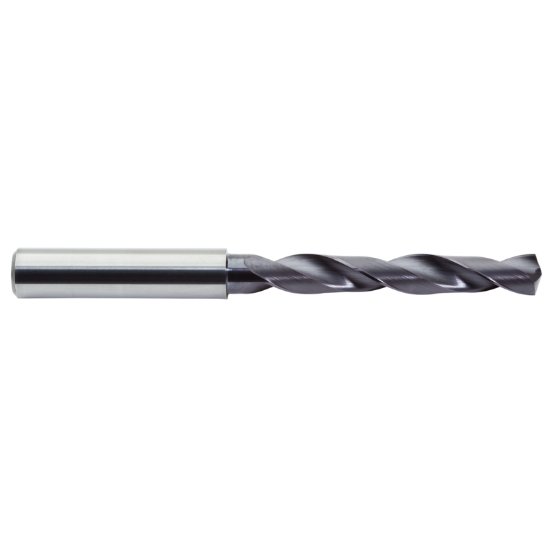

Picture of M.A. Ford 2XDSR5000A Carbide Drill Solid Carbide 140° - 142° 0.500 Dia 0.500 Shank 4.750 OAL 2 Flute 2.830 Flute Length Carbide AlTiN

M.A. Ford 2XDSR5000A Carbide Drill Solid Carbide 140° - 142° 0.500 Dia 0.500 Shank 4.750 OAL 2 Flute 2.830 Flute Length Carbide AlTiN

Part Number: MAF02548 ISO: 2XDSR5000A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1117293
Vendor: Sussex Tool and Supply
$198.59
M.A. FORD 2XDSR5000A DRILL 1/2 SOLID REGULAR Carbide AlTiN Twister XD® 5.0XD Flute 2.8300 71.88MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 4.7500 120.65MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.8300 71.88MM
Cut Dia Min 0.5000 12.70MM - 1/2
Dia Deep 5.0x Dia
