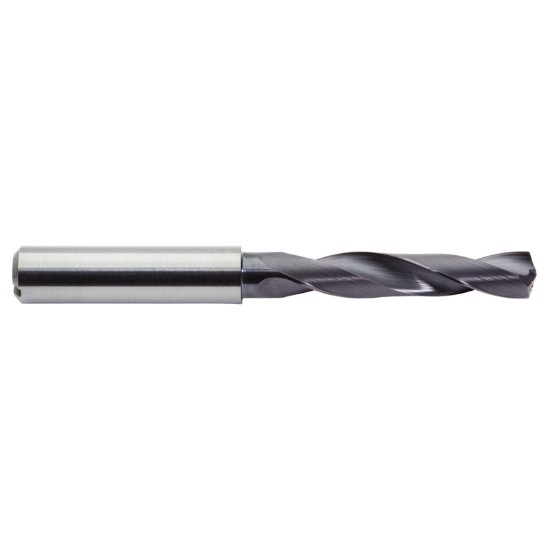

Picture of M.A. Ford 2XDCS2969A Carbide Drill Coolant Thru Carbide 140° - 142° 0.296 Dia 0.312 Shank 3.110 OAL 2 Flute 1.614 Flute Length Carbide AlTiN

M.A. Ford 2XDCS2969A Carbide Drill Coolant Thru Carbide 140° - 142° 0.296 Dia 0.312 Shank 3.110 OAL 2 Flute 1.614 Flute Length Carbide AlTiN

Part Number: MAF04532 ISO: 2XDCS2969A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116593
Vendor: Sussex Tool and Supply
$91.53
M.A. FORD 2XDCS2969A 19/64 3X COOLANT DRILL Carbide AlTiN Twister XD® 3.0XD Flute 1.6140 41.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.3125 7.94MM
Overall Length 3.1100 78.99MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 2
Tool Dia 0.2969 7.54MM - 19/64
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 1.6140 41.00MM
Cut Dia Min 0.2969 7.54MM - 19/64
Dia Deep 3.0x Dia
